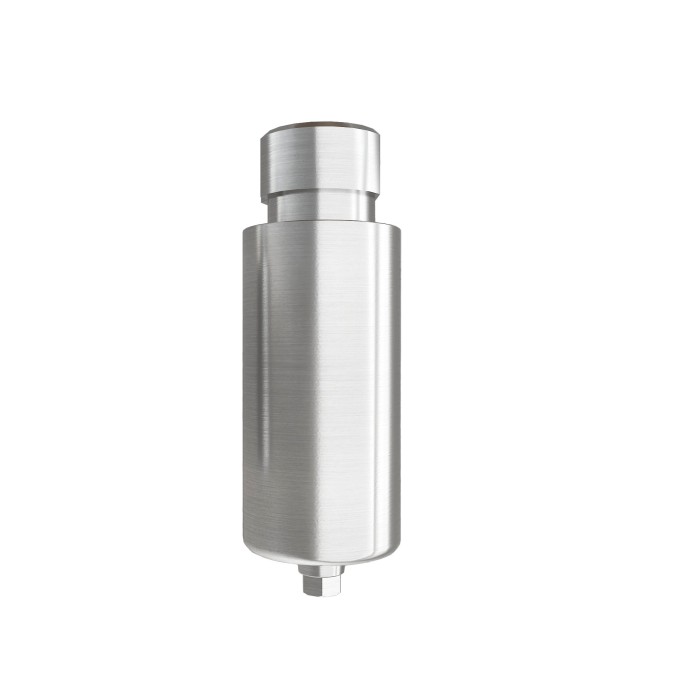

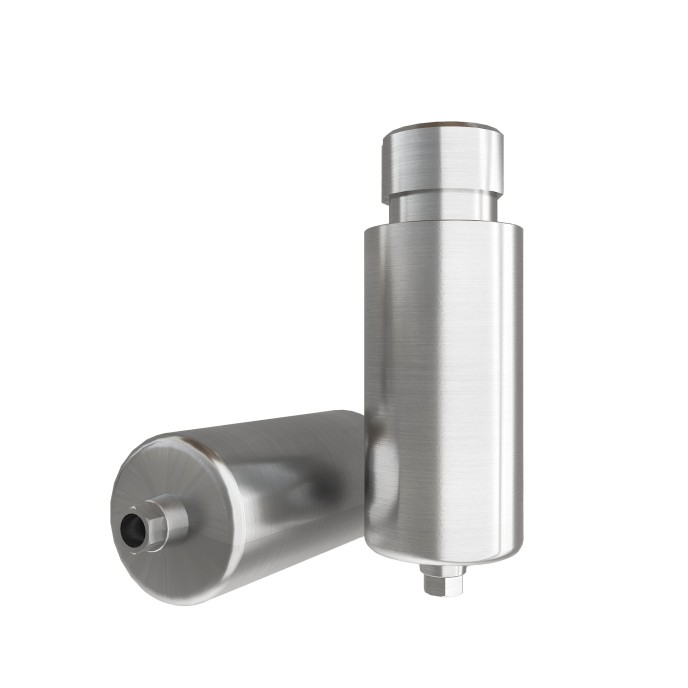

Pre-milled Ti-blanks compatible with Megagen Anyridge™

Pre-milled Ti-blanks compatible with Megagen Anyridge™

Product Overview

Pre-milled Ti-blanks compatible with Megagen Anyridge™ are suitable for Megagen Anyridge implant platforms. They are prefabricated titanium substrates for custom abutment fabrication in CAD/CAM digital machining centers. The implant interface at the base of the blank adopts micron-level pre-machining forming technology. Only the upper portion of the blank needs milling to fabricate one-piece custom abutments. It fits restorative scenarios handled by Anyridge for complex bone conditions such as varying bone density and narrow alveolar ridges, supporting multiple restorative protocols including immediate loading and delayed loading.

Product Material

Medical-grade TC4 titanium alloy. Raw material undergoes homogenization treatment with stable grain structure and excellent resistance to cyclic occlusal fatigue. It offers good resistance to saliva corrosion and maintains stable physical and chemical properties in the moist oral environment over the long term.

Main Specifications & Parameters

A variety of blank diameters and milling heights are available, compatible with different platform diameters of the Anyridge system, and suitable for mainstream dental CNC milling machines and various CAD design software on the market.

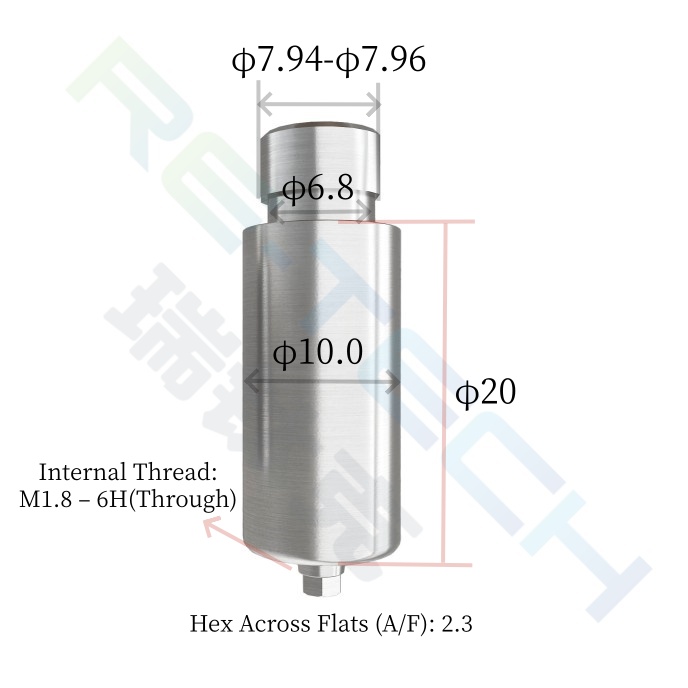

11200210：MG-AR-R-10C（Unit: mm）

（For more specifications, please refer to the product catalog or contact our customer service.）

Scope of Application

Compatible with Megagen Anyridge implant platforms for dental laboratories to digitally mill custom abutments. Suitable for single-tooth and multi-unit fixed bridge restorations. It is especially indicated for complex clinical cases with insufficient bone volume, narrow alveolar ridges and angled implants, supporting anterior aesthetic restoration and posterior immediate loading restoration.

Product Advantages

• Precisely Pre-formed Interface: The interface is fully finished at factory. A sealed interface is formed upon seating to enhance retention, reduce the probability of screw loosening and maintain stable marginal bone level.

• Accurate and Controllable Locating Shoulder: Built-in positioning indexing structure enables easy clamping and data alignment. Technicians can rapidly complete model matching and reduce machining errors caused by manual alignment.

• Restorations for Complex Bone Conditions: Sufficient milling allowance reserved on the blank allows low-profile abutment design, ideal for bone-deficient cases frequently treated with the Anyridge system, such as narrow alveolar ridges and thin bone walls.

• Outstanding Fatigue Resistance: The TC4 titanium alloy blank withstands cyclic occlusal loads. It lowers the risk of deformation and fracture during long-term service under high posterior occlusal force and immediate loading restorations.

• Room for Multi-angle Screw Channel Design: The blank allows milling of screw channels at certain angles. For tilted implant cases, it optimizes screw entry and exit positions while balancing restoration strength and aesthetic outcome.

• Optimized Milling Cycle: No secondary cutting required on the interface area, reducing finishing procedures and shortening total abutment production time, helping laboratories undertake bulk orders of complex restorations.
