type：11150110/11150210
Platform：
DIO-SM-M-10C
DIO-SM-R-10C
We can customize it privately, if you have any needs, please contact us!

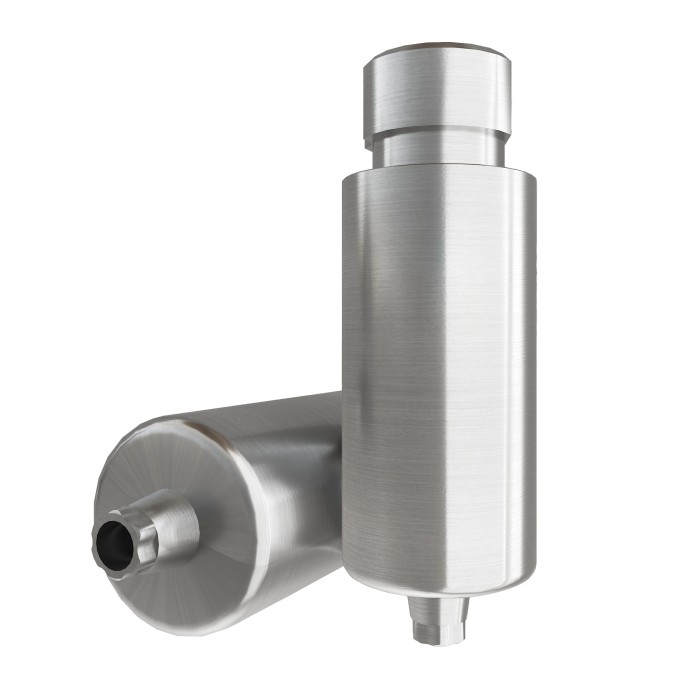

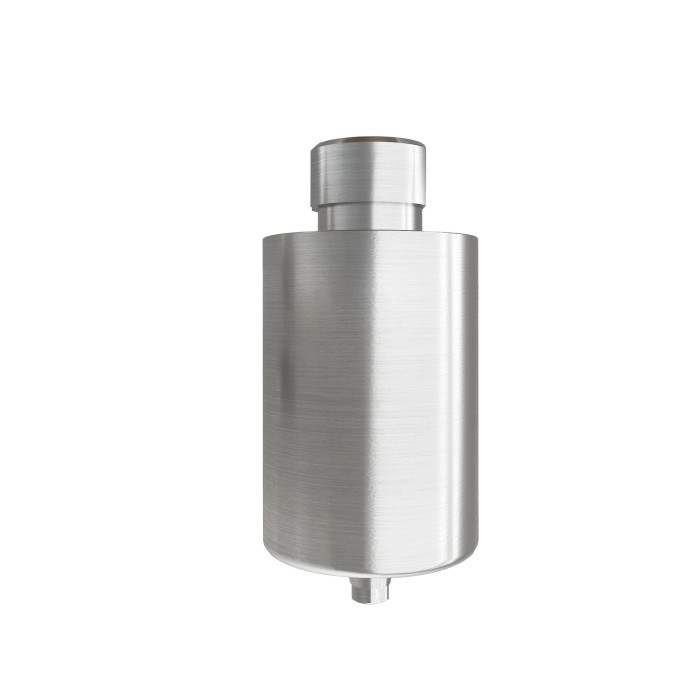

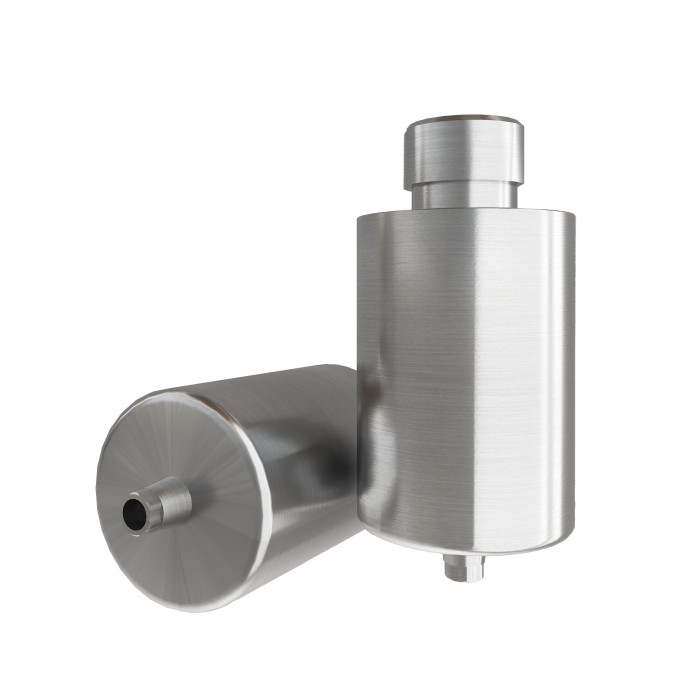

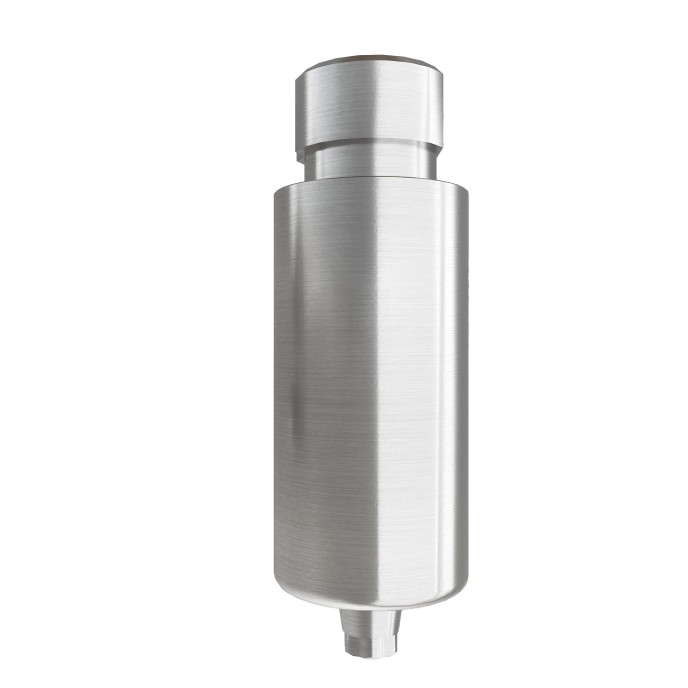

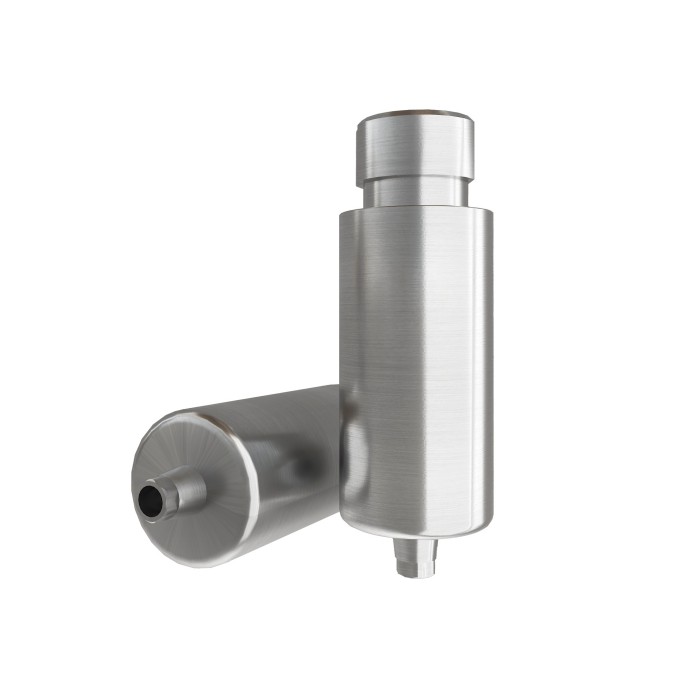

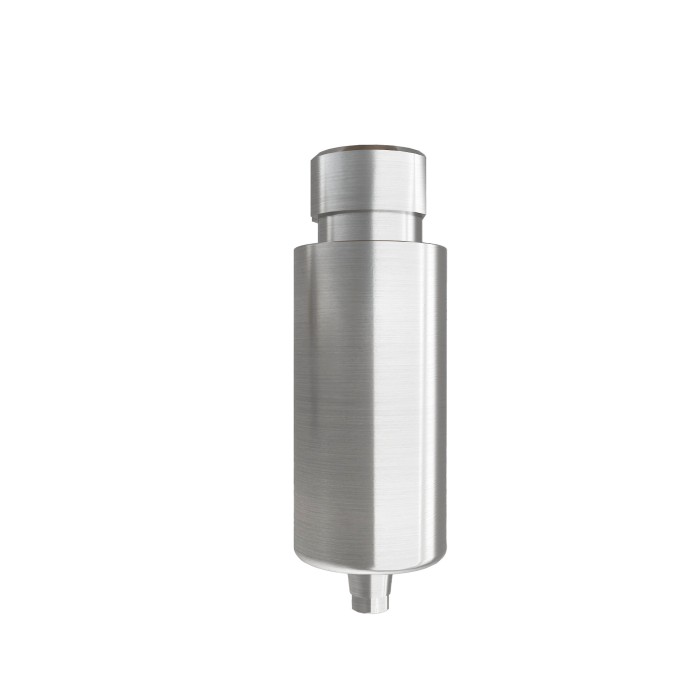

Pre-milled Ti-blanks compatible with DIO™
Product Overview
Pre-milled Ti-blanks compatible with DIO™ are matched to the internal hex interface of the DIO implant system. They are prefabricated titanium substrates specially for digital CAD/CAM milling of custom abutments in dental laboratories. The bottom implant connection interface is pre-manufactured with high precision at the factory. Only the superstructure of the blank needs to be milled during fabrication to produce one-piece custom titanium abutments. It realizes the full digital restoration workflow from intraoral scanning, virtual design to CNC milling to meet various clinical restoration requirements.
Product Material
Medical-grade TC4 titanium alloy with dense and uniform internal microstructure. It features stable mechanical performance, good fatigue resistance and strong corrosion resistance, paired with favorable biocompatibility, meeting the standards for long-term restoration in oral environment.
Main Specifications & Parameters
A variety of blank diameters and milling heights are available, covering different platform models of DIO, compatible with mainstream dental CNC milling machines and CAD design systems on the market.

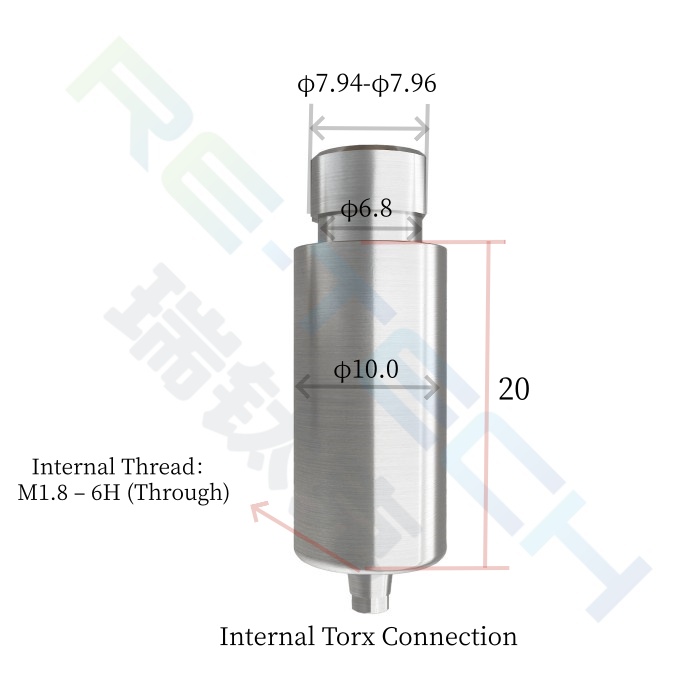

11150110：DIO-SM-M-10C（Unit: mm）
| Top Diameter | Shoulder Diameter | Body Diameter | Body Length | Internal Thread | Connection Type |
| Φ7.94-Φ7.96 | Φ6.8 | Φ10.0 | 20 | M1.8 – 6H (Through) | Internal Torx Connection |

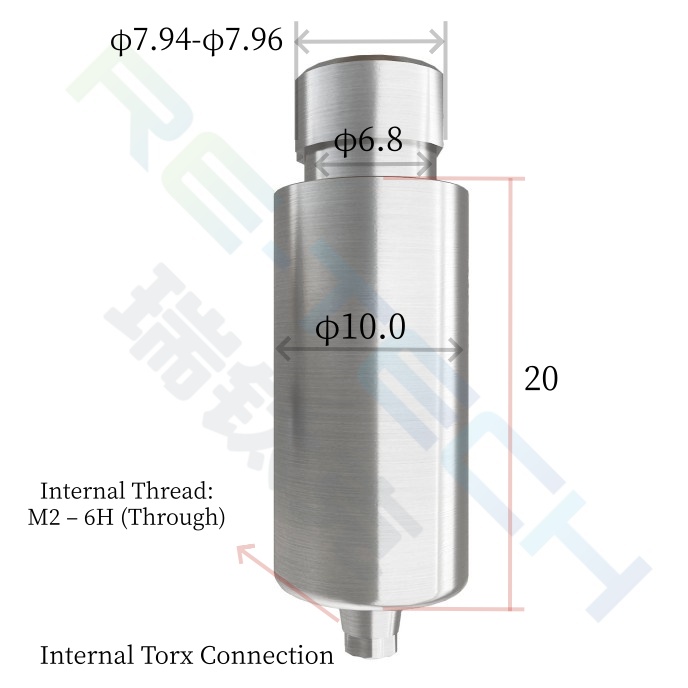

11150210：DIO-SM-R-10C（Unit: mm）
| Top Diameter | Shoulder Diameter | Body Diameter | Body Length | Internal Thread | Connection Type |
| Φ7.94-Φ7.96 | Φ6.8 | Φ10.0 | 20 | M2 – 6H (Through) | Internal Torx Connection |
Other Available Specifications
Material Code | Specification Model |
| 11151110 | DIO-UF-N-10C |
| 11151210 | DIO-UF-R-10C |
| 11156210 | DIO-UF-R-10B |
（For more specifications, please refer to the product catalog or contact our customer service.）
Scope of Application
Compatible with DIO implant platforms for dental laboratories to fabricate custom abutments via digital milling process. Suitable for single-tooth and multi-unit fixed bridge restorations. It addresses restorative cases requiring customized emergence profiles, such as tilted implants and special soft tissue conditions.
Product Advantages
Pre-formed Interface Structure: The implant mating area is pre-precision machined. No machining on the interface zone is required during production, avoiding machining errors, ensuring fitting accuracy between abutment and implant and reducing the risk of interface micro-leakage.
Compatible with Digital Machining Workflow: Works with mainstream dental CAD software and milling equipment with stable data matching. It cuts technicians’ debugging time and accelerates the production and delivery of restorations.
Excellent Mechanical Resistance: TC4 titanium alloy substrate has sufficient toughness and outstanding deformation & bending resistance. It withstands continuous occlusal load in posterior regions and ensures long-term restoration stability.
Multiple Size Options: Rich blank selections satisfy soft tissue contouring demands in anterior aesthetic zones and adapt to high occlusal force restoration conditions in posterior areas.
High Design Flexibility: Ample milling area reserved to support customized emergence profiles and adjustable screw channel orientation to fulfill all kinds of personalized restoration plans.
Optimized Machining Cost: Compared with direct milling from solid titanium blocks, it reduces cutting load on tools, extends cutter service life and improves productivity of dental laboratories.
