type：13282320b/13282330b
Platform：
ATG OPHS320
ATG OPHS330
We can customize it privately, if you have any needs, please contact us!

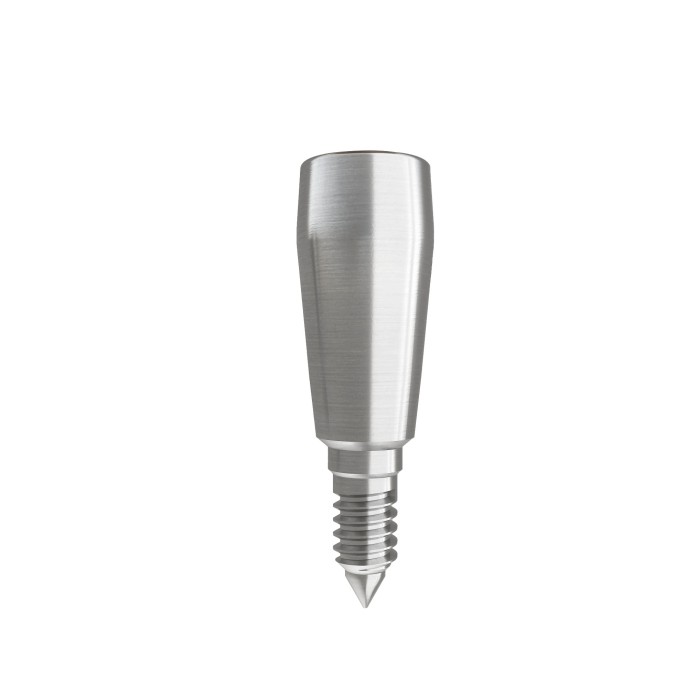

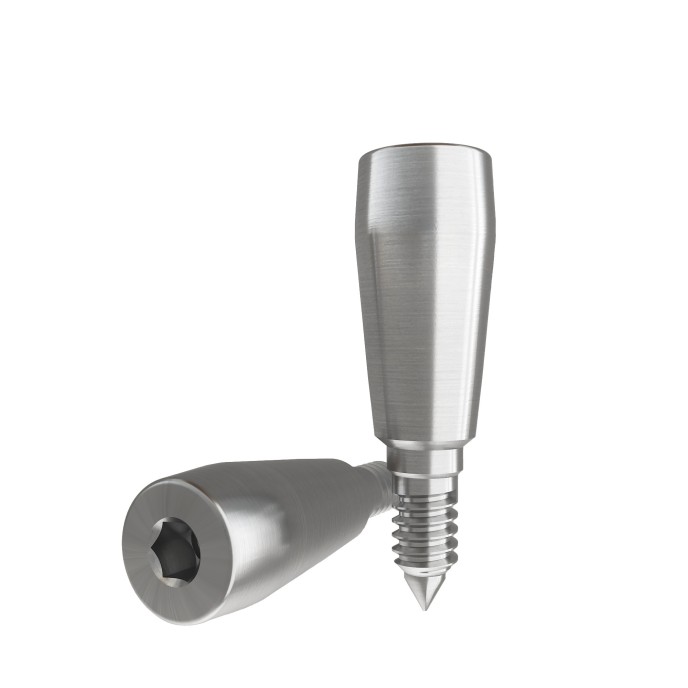

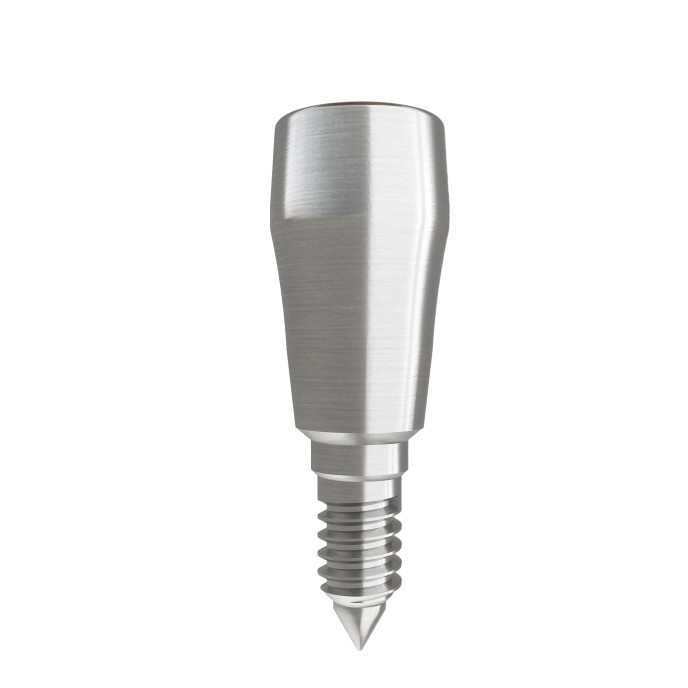

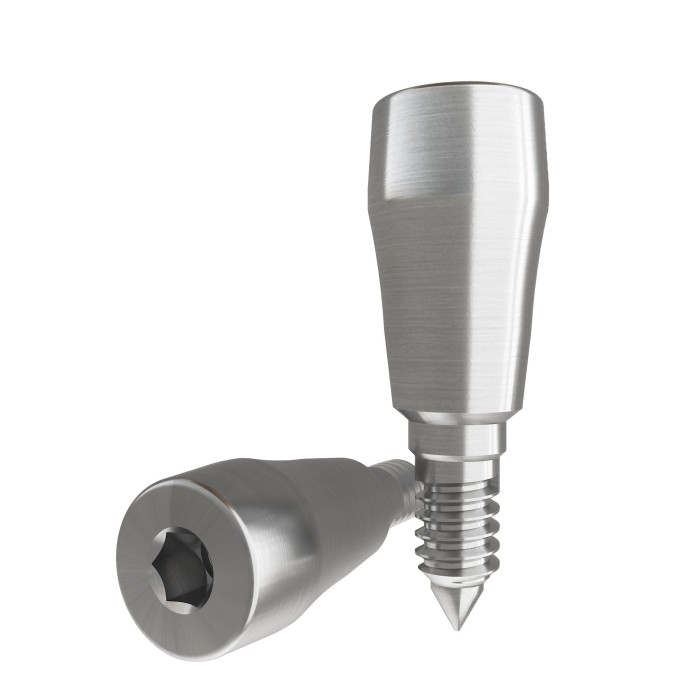

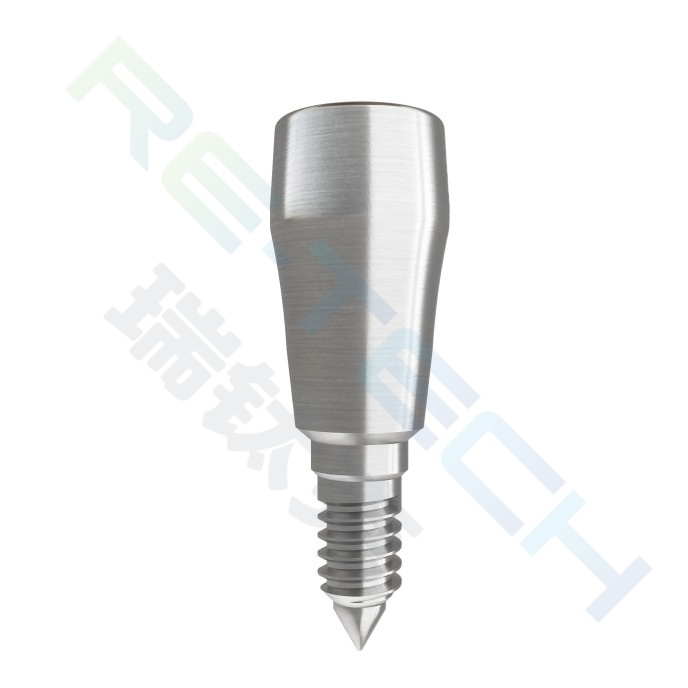

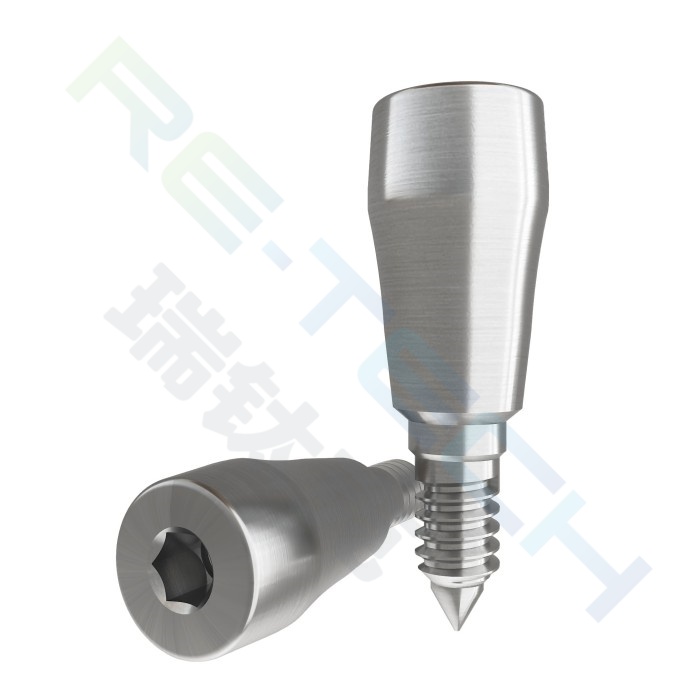

Healing Abutment compatible with Anthogyr™
Product Overview
Healing Abutment compatible with Anthogyr™ is developed to fit the Anthogyr™ implant system and precisely manufactured from medical-grade TC4 titanium alloy. The product is used during the soft tissue healing period after implant surgery to guide gingival contouring around the implant, create a continuous and natural transmucosal profile, and build a stable and healthy soft tissue cuff for subsequent crown and bridge restorations. A wide range of specifications are available to accommodate varying mucosal thicknesses and cover multiple conventional clinical cases.
Product Material
Medical-grade TC4 titanium alloy processed by high-precision CNC cutting technology. It features a smooth and delicate surface with excellent biocompatibility and corrosion resistance. It maintains stable performance in the moist oral environment for long-term use and reduces irritation to the peri-implant mucosa.
Main Specifications & Parameters

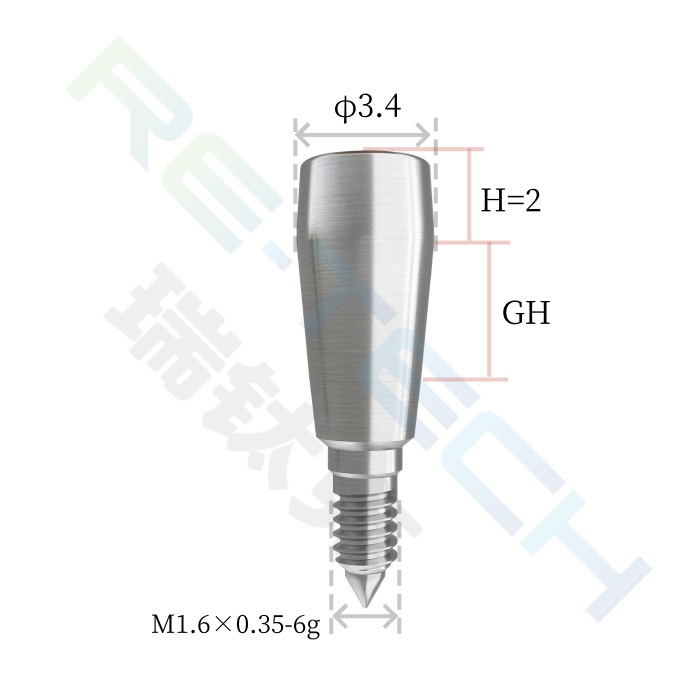

Note: D= Diameter; GH=Gingival Height; H=Head Height. Supplied non-sterile.
| Available Diameter（D） | Available Head Height（H） | Gingival Height（GH） |
| 3.4φ | 2mm | 1.5, 2.5, 3.5, 4.5mm |
| Available Diameter（D） | Available Head Height（H） | Gingival Height（GH） |
| 4.0φ | 2mm | 0.75, 1.5, 2.5, 3.5, 4.5, 5.5, 6.5mm |
| 5.0φ | 2mm | 0.75, 1.5, 2.5, 3.5, 4.5, 5.5, 6.5, 7.0, 8.0, 9.0mm |
| 6.0φ | 2mm | 1.5, 2.5, 3.5, 4.5mm |
（For more specifications, please refer to the product catalog or contact our customer service.）
Scope of Application
Compatible with the Anthogyr™ implant system, this product is applied for gingival contouring and soft tissue management during implant osseointegration. It is suitable for single crown and multi-unit fixed bridge restorations, and can be used for implant restoration cases in anterior aesthetic zones and posterior functional zones.
Product Advantages
High Interface Matching: Precisely machined according to the connection structure of the Anthogyr™ implant platform. It seats smoothly with tight fitting, stays firmly fixed during healing, reduces interface micromovement and minimizes disturbance to osseointegration.
Biomimetic Profile for Aesthetic Gingival Form: Adopting an anatomical design, it evenly supports gingival papillae and gingival margins, preserves soft tissue tension, reduces gingival recession, creates a continuous natural transmucosal shape and ensures aesthetic outcomes for anterior restorations.
Low-Irritation Smooth Surface: Precisely milled surface reduces plaque accumulation, lowers the risk of postoperative soft tissue inflammation, facilitates stable mucosal healing and maintains the health of peri-implant soft tissues.
Flexible Selection with Multiple Specifications: Various combinations of diameter and gingival height are offered. Clinicians can select flexibly based on the patient’s gingival biotype, implant depth and restoration area to suit diverse clinical conditions.
Reliable Strength of One-piece Structure: Fabricated as a single unit via CNC machining, it boasts outstanding structural strength, resists deformation throughout the healing period and continuously maintains stable soft tissue support.
Good Restoration Continuity: The transmucosal contour formed during healing can be directly transferred to the final restoration, reducing secondary surgical trimming of soft tissues, simplifying impression-taking and restoration procedures, and improving the fitting accuracy of the final prosthesis.
