type：13330352b/13330353b
Platform：
AD RS3027
AD RS3028
We can customize it privately, if you have any needs, please contact us!

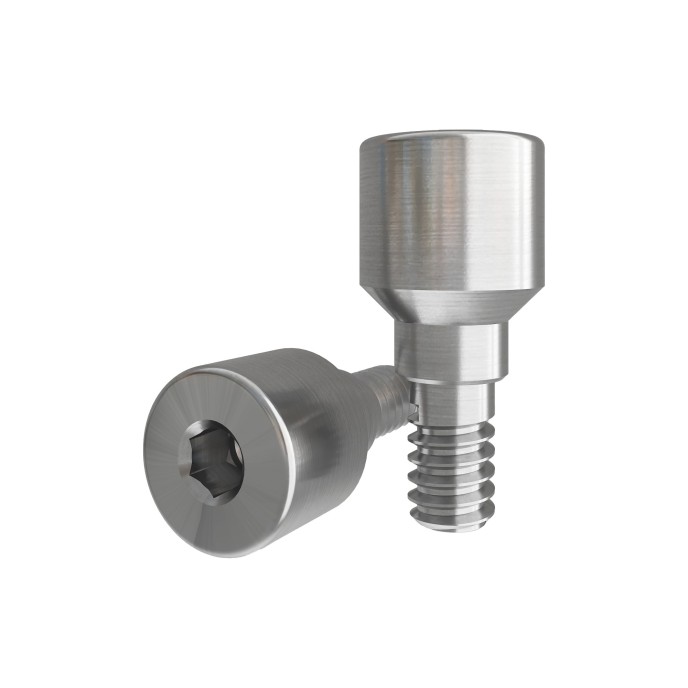

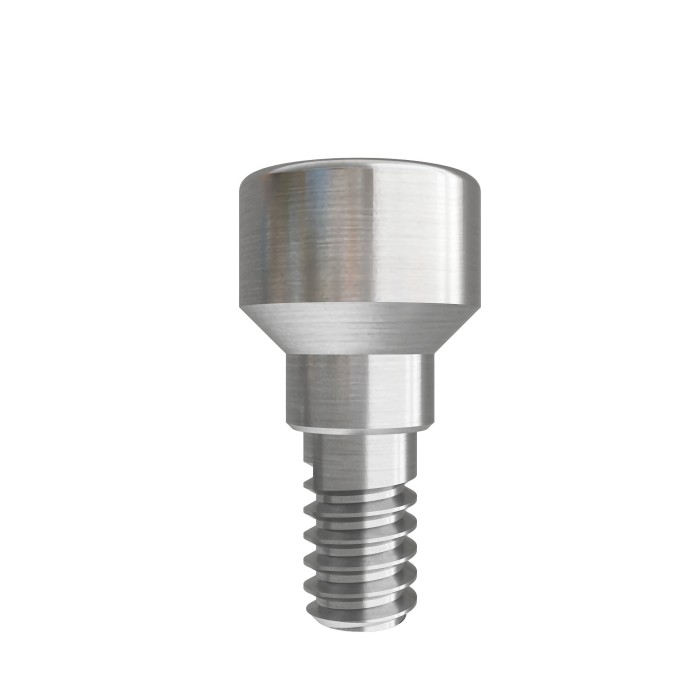

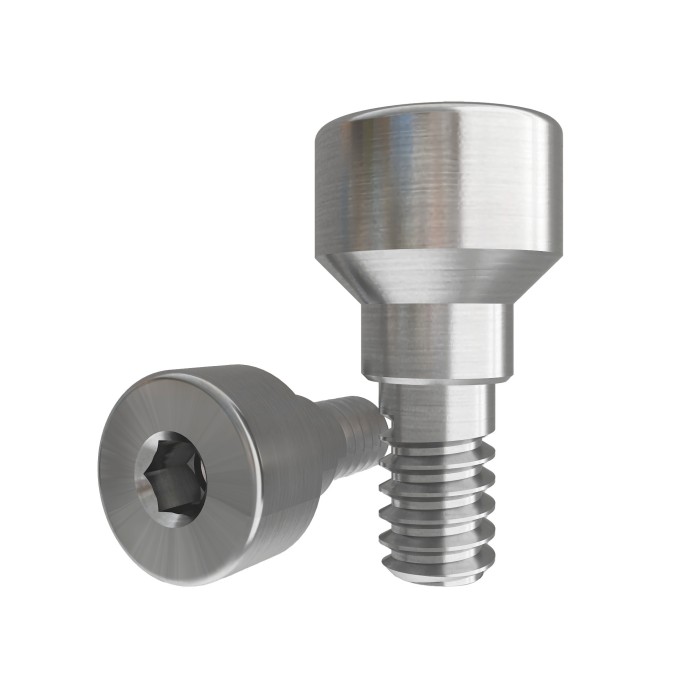

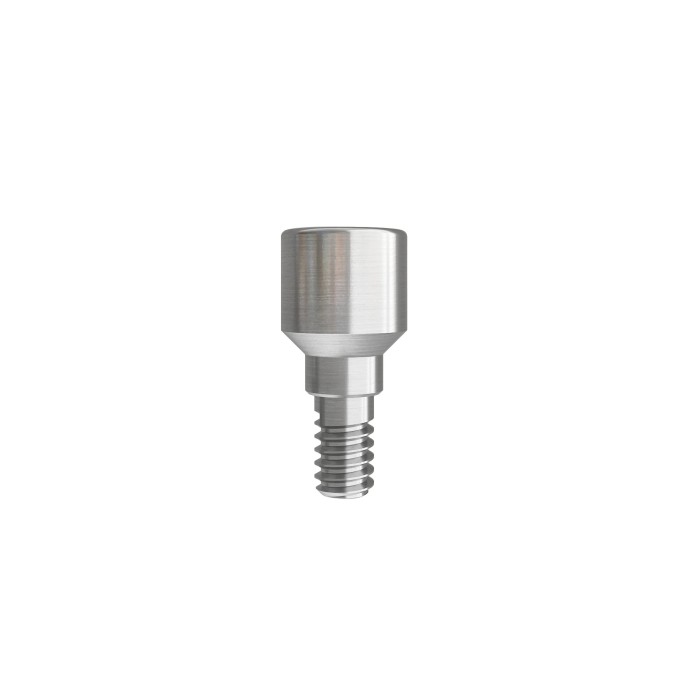

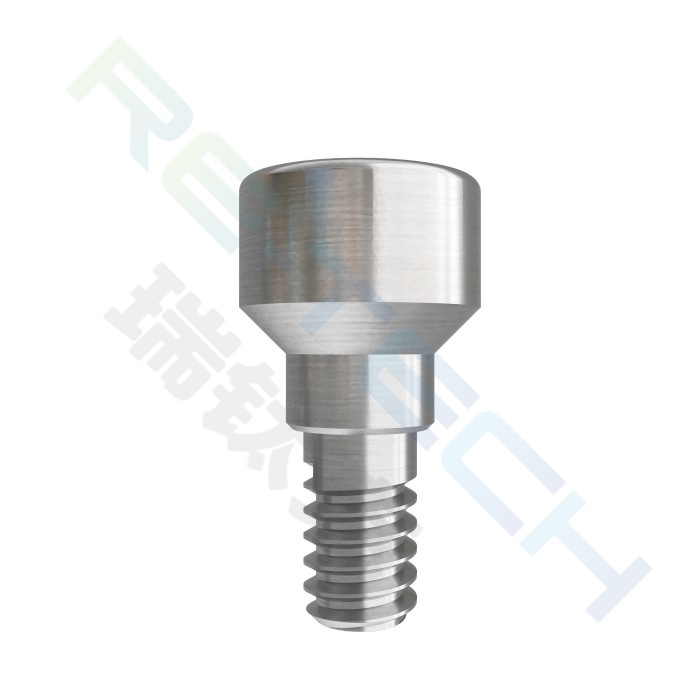

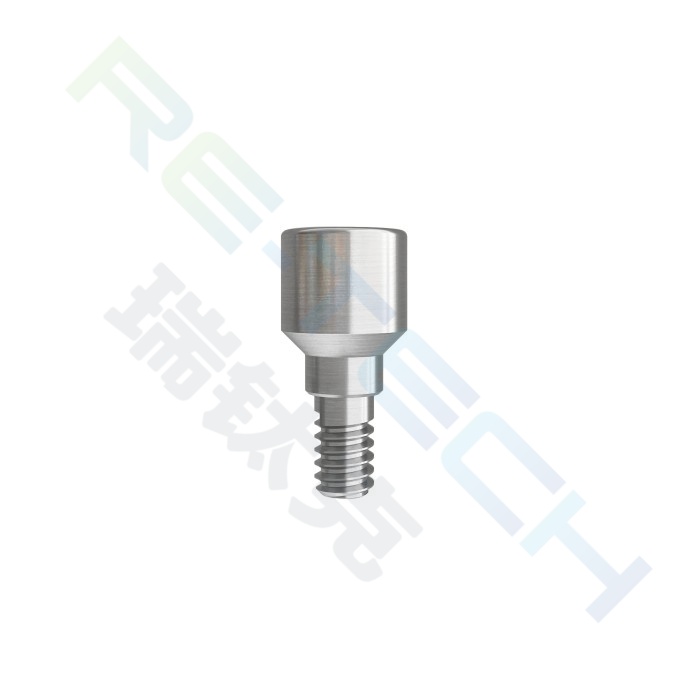

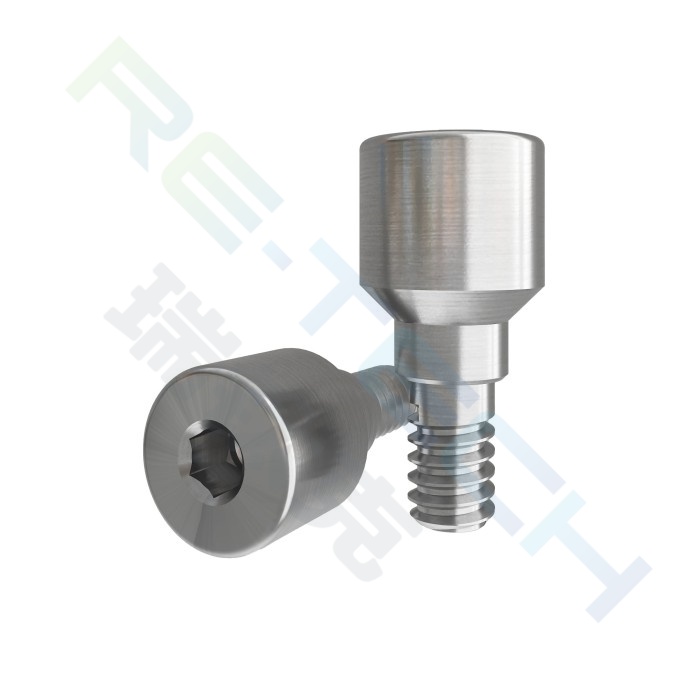

Healing Abutment compatible with Adin™
Product Overview
This healing abutment is a soft tissue shaping component for implant restorations. It guides gingival contouring after implant surgery, establishes stable soft tissue morphology and creates favorable conditions for the suprastructure restoration.
Healing Abutment compatible with Adin™ is specially designed for use with the Adin™ implant system. Fabricated from medical-grade TC4 titanium alloy, it is applied during the soft tissue healing phase after implant surgery to contour the gingiva around the implant and create an ideal emergence profile for final crown and bridge restorations. It is available in a wide range of specifications to accommodate varying gingival thicknesses and routine clinical restoration scenarios.
Product Material
Medical-grade TC4 titanium alloy with precision-machined smooth surface. It features excellent biocompatibility and is gentle on gingival mucosa.
Key Specifications

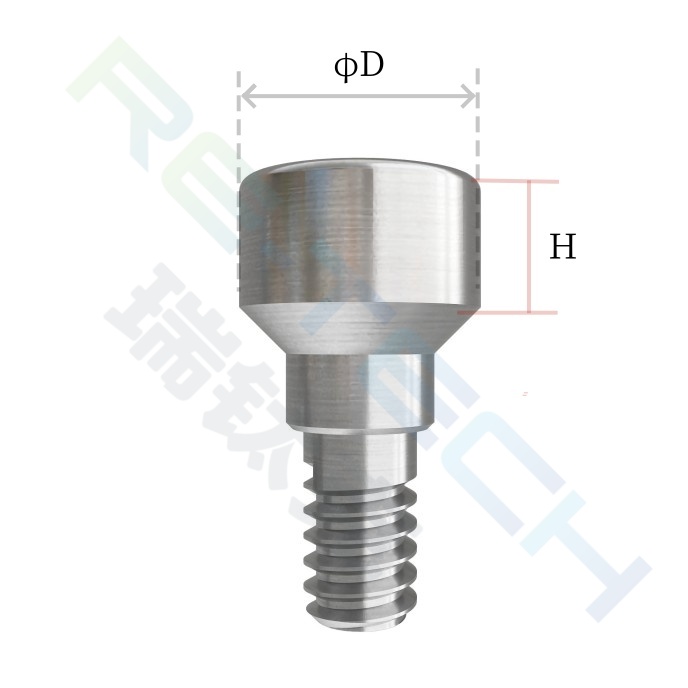

Note: D = Diameter; H = Gingival Height. Supplied non-sterile.
Connection Interface | Available Diameter (D) | Available Gingival Height (H) |
Regular | φ3.5 | 2,3,4,5,6mm |
Regular | φ4.5 | 2,3,4,5,6,7mm |
Regular | φ6.0 | 2,3,4,5,6mm |
Indications
This product is compatible with the Adin™ implant system. It is used for gingival contouring during the osseointegration healing period of implants to reconstruct natural soft tissue morphology. It supports single crowns, multi-unit bridges and full-arch restorations, suitable for implant restorations in anterior aesthetic zones and posterior functional zones
Product Advantages
Precise Compatibility & Stable Seating: Standardized interface design achieves passive fit with Adin™ implants without wobble or displacement, delivering reliable stability throughout the healing phase.
Biosafe & Efficient Healing: Premium titanium material paired with a smoothly machined surface reduces bacterial adhesion and gingival irritation, facilitating uncomplicated soft tissue healing.
Comprehensive Sizes for General Clinical Use: Multiple dimensions cover various gingival biotypes and mucosal thicknesses to meet diverse clinical demands for aesthetic and functional restorations.
Controllable Contouring & Superior Aesthetic Outcome: Scientifically shapes the soft tissue emergence profile, minimizing complications such as gingival collapse and uneven gingival margins to establish a favorable soft tissue foundation for final restorations.
